DESCRIPTION

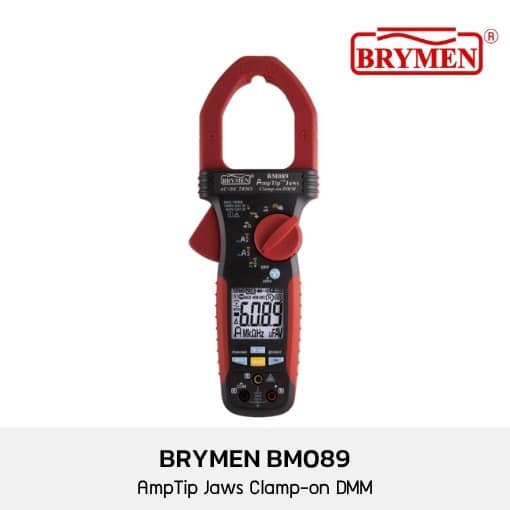

TrueRMS measurements and optimized ergonomics make the BM 080 All-in-one Clamp Meters the best general troubleshooting tools for commercial and residential electricians. BM089 and BM086 are designed to verify the presence of load current, AC/DC voltage and continuity of circuits, switches, fuses and contacts. These durable and rugged clamp meters are ideally suited for current measurements up to 1000 A AC (BM089 – 1000A DC) in cable compartments as well as small conductors using AmpTip™ jaws. Up to 8kV 1.2/50μs lighting surge transient protection.
Unique features:
VFD V & Hz – Variable Frequency Drives – measures fundamental voltage and frequency of most variable frequency drives
Phase Rotation – Dual sensitivity modes for both motors and supply systems
In-Rush Peak RMS – Captures In-rush Peak RMS reading at duration as short as 80ms
EF-detection – both non-voltage (NCV) and single probe voltage detection for indentifying live lines
DCμA – for HVAC flame sensors, testing via probes
CREST 5ms – to capture instanteous peaks
REC – MAX, MIN, MAX-MIN & AVG
Type K – temperature measurement
Flashlight – built-in work light for easy viewing in the dark (BM089)
