Highlight - Additel Product
มองหาชุดสอบเทียบความดันต่ำ ต้องชุดนี้
PROMOTION ! Until 31-OCT-2024
สนใจสั่งซื้อ Low Pressure Calibration Set พร้อม Reference Gauge ( -6 to 6 PSI ) Accuracy : 0.02%FS or ( ±0.0024 PSI )
ประกอบไปด้วย
1. ADT901B-N-SET : 1 QTY
2. Hard Case Carrying : 1 QTY
3. ADT681A-02-DP300-BAR : 1 QTY
Reference Digital Pressure Gauge (±700 mbar)
4. Silicone Tube : 3 QTY
5. ADT100-NPTM4-BARB : 2 QTY
Adapter, 1/4NPT male to hose barb
ในราคาชุดละ : 156,000.- ( ไม่รวม VAT )
ADT901B และ ADT912B Low Pressure Test Pump ที่สามารถใช้ในการสอบเทียบความดันต่ำในช่วง -6 ถึง 6 psi (ADT901B) และ -14 ถึง 60 psi (ADT912A) ที่ตอบโจทย์งานสอบเทียบความดันต่ำที่สุดด้วยการออกแบบระบบที่กันผลกระทบเนื่องจากการขยายตัวของอากาศเนื่องจากอุณหภูมิแวดล้อม หรือ Thermal Isolation Shields ที่จะป้องกันไม่ให้อากาศภายในระบบเกิดการขยายหรือหดตัวเนื่องจากอุณหภูมิแวดล้อมที่เปลี่ยนไปอันเป็นสาเหตุของค่าความดันที่ไม่นิ่งขณะทำการสอบเทียบ
โดย Reference Digital Pressure Gauge ที่แนะนำให้ใช้คู่กับ Low Pressure Pump ทั้ง 2 รุ่นนี้จะเป็น Reference Digital Pressure Gauge ในช่วง Accuracy ในช่วง 0.02%FS หรือ 0.1%RDG ทั้งนี้ก็ขึ้นอยู่ กับ UUC ที่จะทำการสอบเทียบ และ ส่วนมากมักจะใช้ Reference Gauge แบบ Differential Pressure ในการสอบเทียบความดันต่ำ
Reference Gauge ที่แนะนำจะเป็นรุ่น ADT681A-XX-DPXXX , ADT681A-XX-CPXXX และ ADT681A-XX-GPXXX ซึ่งสามารถดูรายละเอียดได้ตามรูปสินค้าด้านขวานี้

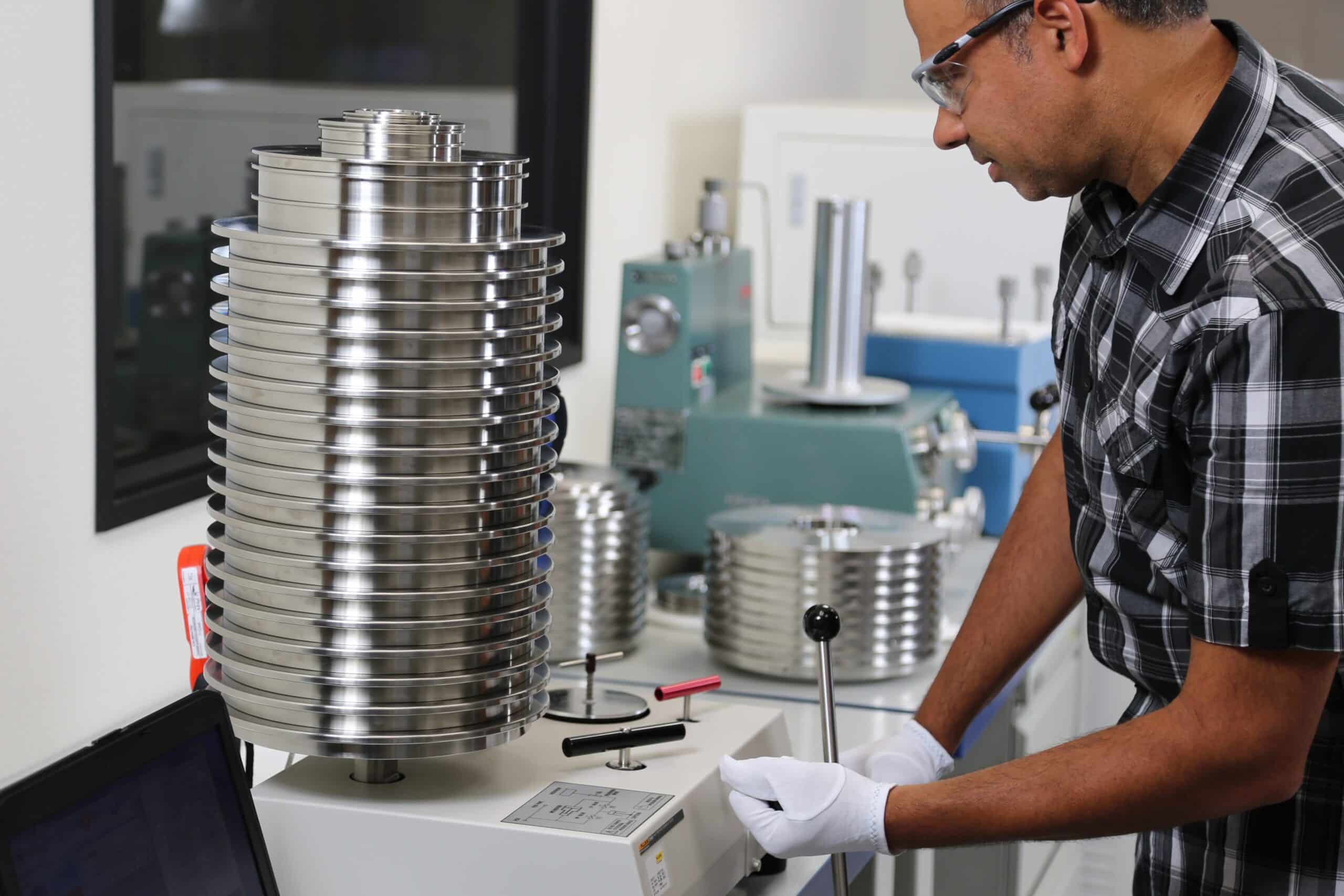

Principle of Pressure Calibration
Recommended Product Videos
Highlight - Fluke Calibration Product
Related Product
5550A: Optimized for your multimeter workload
It calibrates the most popular benchtop digital multimeters with improved test uncertainty ratios (TURs), oscilloscopes to 1 GHz, and clamp meters to 1500 A with continuous current output.
5550A : Download Specification
New ! Multi-Function Calibrator
5560A High-Performance Multi-Product Calibrator defines a new class of high-performance multi-product calibrator, providing the broadest electricalworkload coverage and highest accuracy for calibrating the most demanding modern workloads.
5550A: Optimized for your multimeter workload
5550A Performance Multi-Product Calibrator expands upon the capabilities of the 5522A. Adding new calibration ranges optimized to better matchyour existing digital multimeter workload in a modern, ruggedized instrument with an intuitivegraphical interface.
5540A: Better performance for on-site or mobile calibration
5540A Multi-Product Calibrator extends the capabilities of the 5502A with better performance suited for on-site or mobile calibration
Specification
5560A: The most comprehensive workload coverage
The 5560A High-Performance Multi-Product Calibrator is capable of handling a large workload. It’s a powerful multimeter calibrator, resistance calibrator, temperature calibrator, oscilloscope calibrator, and more. Technical improvements include 30 A continuous current output with no duty cycle and synthesized inductance functionality. Improvements that make the 5560A capable of handling the most popular benchtop 6.5-digit multimeters with better than 4:1 test uncertainty ratio (TUR), oscilloscopes to 2 GHz, and clamp meters to 1500 A.
5560A : Download Specification
5540A: Better performance for on-site or mobile calibration
The 5540A Multi-Product Calibrator extends the capabilities of the 5502A Multi-Product Calibrator with better performance suited for on-site or mobile calibration, covering many of the most demanding field instrumentation workloads. It calibrates the most popular handheld digital multimeters with increased test uncertainty ratios (TURs), oscilloscopes to 600 MHz, and clamp meters to 1500 A with continuous current output.
5540A : Download Specification
Highlight - FOTRIC Product
Extraordinary Performance
Up to
640 * 480 IR resolution
Up to
-20~1550°C Temp range
Up to
30 mK Thermal Sensitivity
Up to
0.19mrad IFOV
FOTRIC 340 Series Thermal Imager Camera
The FOTRIC 340 series is an advanced Industrial thermal camera, designed for professionals to improve maintenance efficiency in the electric, oil and gas, and manufacturing industries. Its up to 640×480 IR Resolution and 30 mK NETD enable superior imaging display on 5” LCD touch screens. Other advanced features like laser-assisted autofocus, interchangeable lens options, and powerful AnalyzIR report software, all boost operational performance, making it an ideal tool for site inspections.
AccuMac designs and manufactures digital thermometer readouts, platinum resistance temperature probes and thermocouples. Withdecades of experience in metrology, our team has a passion for making great products using the most cutting-edge technology available. From the initial design to the final product, our goal is to make devices of the highest quality and performance for our customers. Our products have a wide range of uses and applications, including laboratory metrology, industrial process control and quality assurance.
Download : AccuMac Catalog.pdf
Secondary Reference PRT is working with ADT282 Dual Channel Thermometer Readout
Ordering Code : AM1710-12 , AM1730-12 or AM1751-12
( Note : “12” means 12 inches probe length )
RH Systems
RH systems 473 Dew Point Mirror High Performance Chilled Mirror Hygrometer with Cable Mounted Measuring Heads
Price : ( Contact Salesperson for quote )
Contact Expert : Mr. Boonya Intayos ( Phone : 080-803-1200 )
The Model 473 Dew Point Mirror is a portable instrument equipped with a separate measuring head for both spot and continuous measurement of Dew/Frost point and temperature in air and gas mixtures. Based on the chilled mirror principle, the 473 ensures direct and accurate humidity measurement.
The 473 is available in a number of different models including: 473-RP2, 473-SH2, and 473-SHX. See table below for specifications for each model.
Full Color Touch Screen
The system uses a full color active matrix liquid crystal display with an integral touch panel. It has a high contrast ratio and a wide viewing angle for easy readability. Data is displayed in large easy to read fonts. Using the on screen buttons and menus, you can easily configure each line of the display for a variety of humidity, temperature, and pressure parameters that may be viewed in either SI or non-SI units. A simple touch of a button toggles any parameter between numeric or graph format.
RH Systems CGS-240 Humidity Generator
Fully Automated Two-Pressure Two-Temperature Humidity Generator
Price : ( Contact Salesperson for quote )
Contact Expert : Mr. Boonya Intayos ( Phone : 080-803-1200 )
The RH Systems CGS-240 Humidity Generator is a system capable of continuous, high-accuracy humidity generation over a wide range of humidity, temperature, and flow rates. The CGS-240 design is an RHS hybrid two-pressure two-temperature design based on fundamental NIST developed principles
Principle of Operation
A hybrid humidity generator combines the features of the NIST-proven two-pressure and two-temperature humidity generation principles. Utilizing these principles, a stream of gas at an elevated pressure is saturated with respect to the liquid or solid phase of water at a given saturation temperature. Here, saturation temperature is the major determining factor for the quantity of water vapor admixed with the carrier gas. Pressure within the saturator is the major determining factor for the carrier gas quantity of the mixture. Upon leaving the saturator, the humidified gas stream (consisting of the water vapor admixed with the carrier gas) is then expanded to a lower pressure and warmed to an alternate temperature at the point of use, such as a Device Under Test (DUT). Measurements of the pressure and temperature within the saturator, and the pressure and temperature following expansion (generally at the DUT), are then used to determine the resulting humidity content of the gas stream. Humidity is then accurately controlled by regulation of the temperature and pressure within the saturator.
TD1880 Precision Multifunction Calibrator
TD1880 Precision Multi-function Calibrator is a multifunction calibrator with wide range and high accuracy, integrates AC/DC voltage and current standard source, can output excellent DCAC voltage, DCAC current, DCAC power, phase, frequency, and analog resistance and capacitance etc. It’s applied for calibrating 6.5 digits or less digital multimeters.
Feature of TD1880
Precision Multifunction Calibrator
• DC voltage output: ± (0~1020 V)
• DC current output: ± (0 ~ 20.5 A)
• AC voltage output: 1mV ~ 1020 V
• AC current output: 29 μA ~ 20.5 A
• Sinusoidal wave frequency: 10 Hz ~ 500 kHz
• Simulated DC resistance: 0 Ω ~ 1100 MΩ
• 2 MHz square wave frequency output
• Phase output
• AC/DC power output
• Simulated capacitance(optional)
• 8 kinds of thermocouple output and measurement (option)
• 6 kinds of thermal resistance output (option)
• Clamp meter calibration (optional)
