Specifications
Key Features

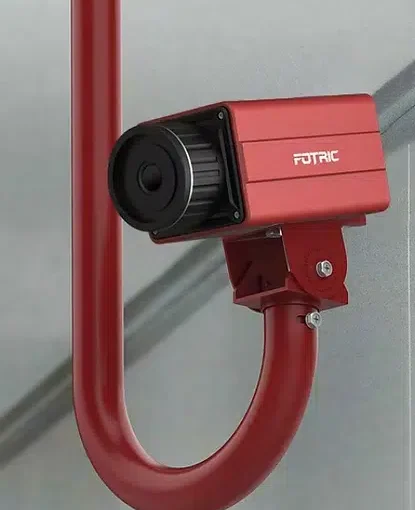

628CH
Thermal resolution
640*480
Detector type
Uncooled focal plane array detector
Thermal sensitivity
<30 mk
Detector pitch
17μm
Spectral range
7.5μm~14μm
FOV & IFOV
Dependent on the lens configuration
Focus type
Automatic
Temperature range
-20℃-150℃
0℃-650℃
300℃-2000℃
Accuracy
± 2 °C or ± 2 %, whichever is greater
Measurement parameters
Emissivity (0.01-1.0); Ambient temperature; Reflected temperature; Relative humidity; Distance; External optics compensation
Partial emissivity
Support
Palettes
10 standard palettes and 10 inverted palettes
Image process
Non-uniform calibration, digital enhancement
Mirror mode
Left-right, up-down, center
Video compression standard
H.264
Radiometric stream
25Hz
Pan-tilt-zoom station compatibility
Support Pelco-D protocol
Measurement tools
5 points, 10 lines and 10 regions, support Modbus output
Software
AnalyzIR; Open API FOTRIC SDK
Ethernet type
10M/100M/1000M adaptive
Network protocols
IPv4，UDP，TCP，RTSP，RTCP，RTP
Simultaneous stream
Mainstream and substream: 10; Radiometric stream: 1
IP connection interface
ONVIF
Power connector
Screw-on wire terminal
Network connector
Screw-on RJ45 with status indicator LED
Alarm input/output
1 relay output, load capacity：24V，1.5A
1 optocoupler output：Voltage：3.3-24V，Max current: 35mA
1 optocoupler input：Voltage：3.3-24V，Input current : 5mA-15mA
Serial port
1 RS-485
Power supply
12V/24V DC, PoE
Power consumption
4W
Safety standards
GB 4943.1-2011 | EN 62368-1:2014+A11:2017；GB/T 19870-2018
Electromagnetic compatibility
GB/T 18268.1-2010 | EN 61326-1:2013
GB 17625.1-2012 | EN IEC 61000-3-2:2019
GB/T 17625.2-2007 | EN 61000-3-3:2013/A1:2019
GB/T 19870-2018
GB 4824-2019
EN 55032:2015/A11:2020
EN 55035:2017
FCC CFR47 Part15 subpart B
Protection level
IP40
