New

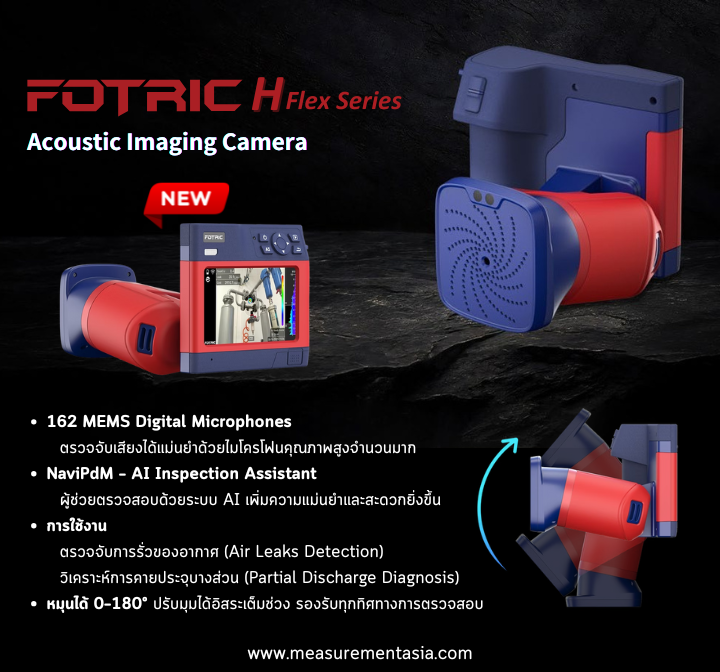

FOTRIC H6Flex Acoustic Imaging Camera

คุณสมบัติ

– 162 MEMS Digital Microphones

ตรวจจับเสียงได้แม่นยำด้วยไมโครโฟนคุณภาพสูงจำนวนมาก

– NaviPdM – AI Inspection Assistant

ผู้ช่วยตรวจสอบด้วยระบบ AI เพิ่มความแม่นยำและสะดวกยิ่งขึ้น

– การใช้งาน

ตรวจจับการรั่วของอากาศ (Air Leaks Detection)

วิเคราะห์การคายประจุบางส่วน (Partial Discharge Diagnosis)

– หมุนได้ 0–180°

ปรับมุมได้อิสระเต็มช่วง รองรับทุกทิศทางการตรวจสอบ

Category: Acoustic Imaging Camera

Main Specifications
Product Catalog & Full Specifications

Main Specifications

Model	FOTRIC H6Flex
Microphone channel	162 MEMS digital microphones
Acoustic Image Field of View (FOV)	66° × 52°
Acoustic Sampling Rate	200kHz
Acoustic Refresh Rate	25Hz
Working Distance	0.3~200m(1~626ft）
Detection Mode	Leakage mode: displays the leakage level on the device. Partial discharge mode: display PRPD chart, suitable for different AC frequencies (50/60Hz).
On-device Analysis	The device is capable of directly analyzing acoustic images and Holographic acoustic videos
Display Screen	5-inch, 1280*720 pixels, IPS LCD touch display with Gorilla Glass explosion-proof cover
Digital Camera	13 Megapixels, Industrial-Grade Digital Camera
NaviPdM	AI Inspection Assistant
Articulate Microphone Array	180° Rotatable
Acoustic Image Delay (T-FFTD®)	Captures instantaneous sound signals, can stay longer in real-time acoustic image
Acoustic Image Focus	Masks surrounding areas, focuses only on the acoustic image of the focused area
On-device Report Generation	Support Word or PDF format
Partial Discharge Diagnosis	discharge, and corona discharge, as well as their severity
Gray Scale Background	Display digital camera images in grayscale
Favorites	Click the favorite button to save the favorite status to the acoustic images and holographic acoustic videos, highlighted in the gallery preview screen, and later filter by favorite status in the gallery
Storage Card	SD card, hot-swappable, maximum support 1TB
Battery Operating Time	Actual usage time depends on environmental and usage conditions
Battery Type	3.6V, 9900mAh Rechargeable Lithium Battery, Field-Replaceable
Supported Languages	English, Traditional Chinese, Spanish, Korean, German, Portuguese, Italian, French, Thai
Standard Configuration	Acoustic imaging camera main unit, rechargeable lithium battery * 2, charging dock, power adapter, USB Type-C to USB cable, Micro HDMI to HDMI cable, 128G SD card, SD card reader, accessory bag (wrist strap, 2 wrist strap holders, 2 M4*8 screws, lanyard, hex wrench, SIM eject tool), document bag (packing list, quick start guide), portable soft bag, hard carrying case, outer packaging box

Product Catalog & Full Specifications

FOTRIC H6-Flex Acoustic Camera Catalog
