Specifications
Pressure Measurement Accuracy

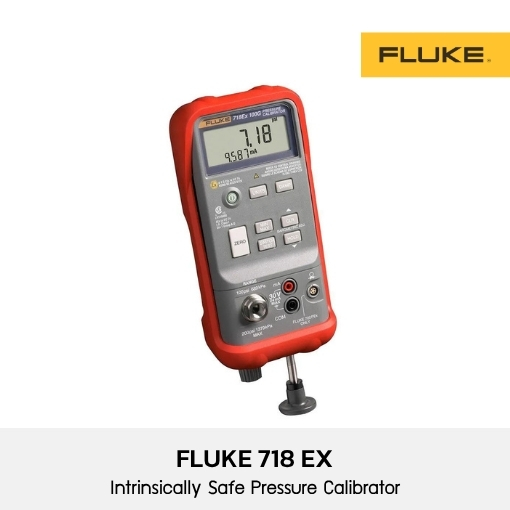

Fluke 718Ex 30G
Range
-830 mbar to 2 bar (internal sensor)
Over pressure: 3x FS
Resolution
0.0001 bar
Accuracy
0.05% FS
Functions
Zero, Min, Max, Hold, Damp
Fluke 718Ex 100G
Range
-830 mbar to 2 bar (internal sensor)
Over pressure: 2x FS
Resolution
0.001 bar
Accuracy
0.05% FS
Functions
Zero, Min, Max, Hold, Damp
Fluke 718Ex 300G
Range
-830 mbar to 20 bar (internal sensor)
Over pressure: 375 psi, 25 bar
Resolution
0.0001 bar
Accuracy
0.05% FS
Functions
Zero, Min, Max, Hold, Damp
Fluke 718Ex series
Range
Via pressure module connector
29 pressure modules, 2.5 mbar to 700 bar
Over pressure per pressure module specs
Resolution
Per pressure module specs
Accuracy
To 0.025% of full span, per pressure module specs
Functions
Zero, Min, Max, Hold, Damp
Source pressure, built in pump range
-820 mbar to full scale
Technical Data
Measure accuracy
Range
0-24 mA
Resolution
0.001 mA
Accuracy
0.02% rdg ±2 counts
Display
LCD, 5 digit pressure and current simultaneous
Environmental Specifications
Operating temperature
-10°C to 55°C
Storage temperature
-40°C to 60°C
Humidity (without condensation)
95% (10°C to 30°C)
75% (30°C to 40°C)
45% (40°C to 50°C)
35% (50°C to 55°C)
Operating altitude
3,000 m max
Safety Specifications
Safety
ATEX II 1G Ex ia IIC T4 compliant
CSA Certification I.S. Class I
Div 1 Groups A-D , T4
Mechanical and General Specifications
Size (L x W x H)
216 x 94 x 66 mm (with holster)
Weight
Approx. 992 g (with holster)
Warranty
Three years, one year for pump
Shock
1 meter drop test
Vibration
Random, 2 G, 5-500 Hz
Battery type
One 9-volt alkaline battery ANSI/NEDA 1604A or IEC 6LR619V
Battery life
4 to 20 hours, depending on functions used
