Specifications
Fluke 9500C High-Performance Oscilloscope Calibrator

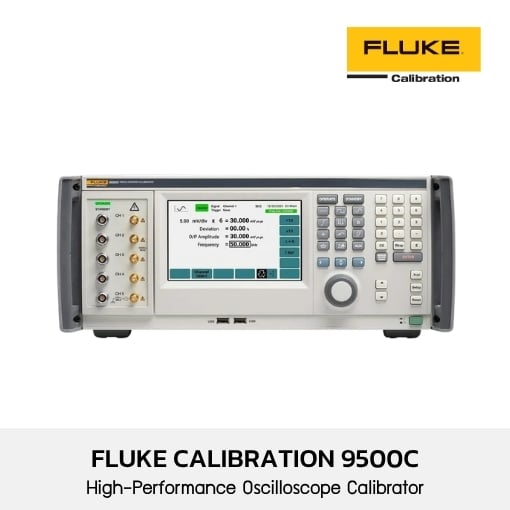

Fluke 9500C Mainframe with 9540C Head
Oscilloscope Functions
Range
Best Performance
ACV*
40 uV to 200Vp-p; 1 MΩ and 50 Ω Load; 10 Hz to 10 kHz Square Wave
±0.1% + 10uV
DCV*
1 mV to 200V into 1 MΩ ; 1 mV to 5V into 50 Ω
±0.01% + 10 uV
Edge
3 mV to 3 Vp-p; 500 ps into 1 MΩ or 50 Ω
1 V to 200 Vp-p; <200 ns into 1 MΩ
Fast Edge 5 mV to 3 Vp-p; 125 ps±40 ps
±15 ps
Leveled Sine Frequency Range
0.1 Hz to 4.2 GHz
±0.15 uHz/Hz + 1 uHz
Leveled Sine Amplitude
0.1 Hz to 2.1 GHz
2.1 GHz to 3.2 GHz
3.2 GHz to 4.2 GHz5 mV to 5 V
5 mV to 3 V
5 mV to 2 V
Leveled Sine Flatness
0.1 Hz to 550 MHz
550 MHz to 1.1 GHz
1.1 GHz to 2.1 GHz
2.1 GHz to 4.2 GHz± 1.5%
± 2%
± 3%
± 4%
Marker
Up to 1 p-p; Square, Pulse, Spike or Sine; 9 ns to 55 s
±0.15 us/s
Pulse
1 to 100 nS width
< 5% + 500 ps
Resistance & Capacitance Measure
50 Ω or 1 MΩ; 1 to 95 pF
0.1% for Ohms; 2% for Capacitance
Input Pulse
5V to 20V in to 50 Ω
Up to 100 s
General Specifications
Communication Interfaces
IEEE 488.2; USB; Ethernet
Standard
Specification Interval
90d, 1yr, 2yr
Specification Confidence
99% (k=2.78) and 95% (k=1.96)
Touchscreen
17.8 cm (7 in.) Graphical User Interface
Transport Case (w/ Wheels)
Included Standard
