Specifications
| Performance specifications and features | |

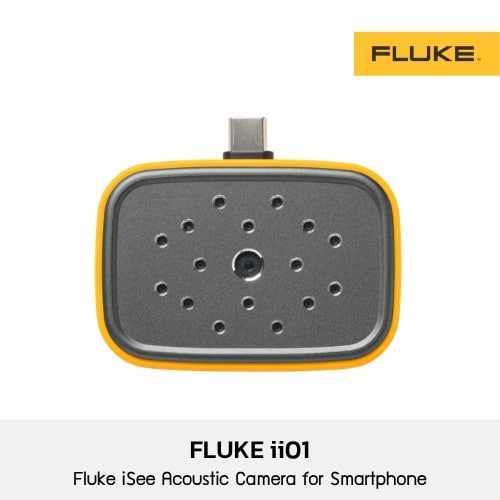

| Microphones | 16 high-precision MEMS sensors |
| Frequency band | 2kHz to 48kHz |
| Detection range | 0.50 m to 50 m (based on site conditions) |
| Field of view (H x V) | 50° x 38° |
| Frame rate | 20 Hz |
| Sensitivity | -38 dBV |
| Signal-to-noise ratio | 73 dBA |
| Visible lens resolution | 2 MP |
| Acoustic image | SoundMap™ image |
| Quick leak detection mode | Leak mode enabled: Frequency band locks at 37.4 kHz to 42.6 kHz: Leak mode disabled: Frequency band selection through manual slider |
| dB value of the target centerpoint | Yes, it can be enabled or disabled |
| Focal length | 50cm to infinity |
| Image format | JPG, MP4 (up to 5 minutes) |
| Color palettes | 3: IronRed, Blue-Red and Grayscale |
| Palette: Color Blending % | Yes: 0 %-100 % |
| Customized watermark | Image or English characters watermarks |
| General Specifications | |
| Interface | Type-C |
| Operating system supported | Android / HarmonyOS |
| Operating temperature | 0 °C to +40 °C |
| Storage temperature | -30 °C to +60 °C |
| Operating humidity | 10% to 90% RH, non-condensing |
| Operating altitude | Up to 2000 m |
| Storage altitude | Up to 12000 m |
| Power consumption | 1.2 W (Typical) |
| Ingress protection | IEC 60529: IP54 |
| Size (L x W x H) | 61 x 50 x 12 mm |
| Weight | 50g |
| EMC Environment | International IEC 61326-1: Electromagnetic environment for portable equipments CISPR 11: Group 1, Class A Group 1: Equipment intentionally generates and/or uses conductive-coupled RF energy, which is necessary for its internal operation. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. |
| Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) Class A: Device meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. | |
| United States (FCC) 47 CFR Part 15 Subpart B. This product is considered an exempt device per clause 15.103. | |
