Specifications
Product number
Alarm voltage range

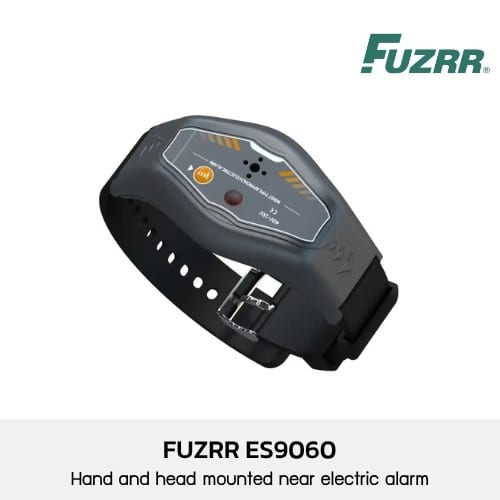

ES9060AH Wrist type high voltage static alarm
1kV~500kV
ES9060AL Wrist type low pressure static alarm
40V~1kV
ES9060BH Arm type high voltage static alarm
1kV~500kV
ES9060BL Arm-type low-voltage static power alarm
40V~1kV
ES9060CH Safety helmet high-voltage static alarm
1kV~500kV
ES9060CL Safety helmet low-voltage electrostatic alarm
40V~1kV
Function
Near-power alarm, voltage detection
Power supply
CR2032 button battery
Power consumption
< 5mA
Detection method
Non-contact
Starting mode
Auto start
Battery life
Standby time greater than 12 months
Alarm method
Sound and light reminder
Weight
50g
Meter size
(Wrist type) 80mm × 42mm × 30mm / (Arm type/Safety helmet) 87mm × 37mm × 22mm
IP grade
IP65
Working temperature and humidity
-10°C ~ 40°C; below 80% Rh
Storage temperature and humidity
-10°C ~ 60°C; below 70% Rh
Withstand voltage
Tolerance of 1000V / 50Hz between the instrument line and the housing for 1 minute
Insulation
Between the instrument line and the housing ≥ 100MΩ
Structure
Case insulation
Suitable for safety regulations
IEC61010-1 CAT III 600V, IEC61010-031, IEC61326, class of pollution 2
