DESCRIPTION

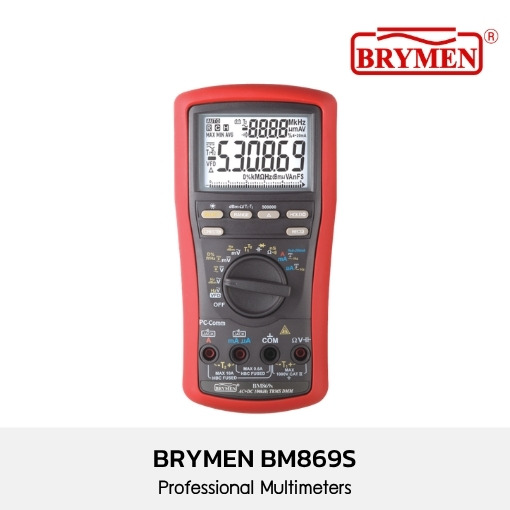

BM869s & BM867s is the next generation high performance industrial multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. Ultimate choice of resolution, performance, safety and features. New series delivers the accuracy and advanced troubleshooting capabilities you need to solve problems fast. List of features is long: Large 500,000 counts Dual Display, dBm, 12kV Transient Portection, two channels temperature measurement, nS Conductance, High Impedance Voltage, High Accuracy 0.02% DCV, Current & Hz with unique functions:
Beep-Jack™ – beeps against improper terminal plug in (decreases risk of damage)
VFD V & Hz – Variable Frequency Drives – measures fundamental voltage and frequency of most variable frequency drives
CREST 1ms – to capture instanteous peaks
REC – 50ms recording MAX, MIN, MAX-MIN & AVG
X-Speed Capacitance – measures up to 25mF only in few seconds, 1kV protection
4-20mA – Process control loop current reading
T1 , T2 – two channel temperature measurement
