Specifications
Model:

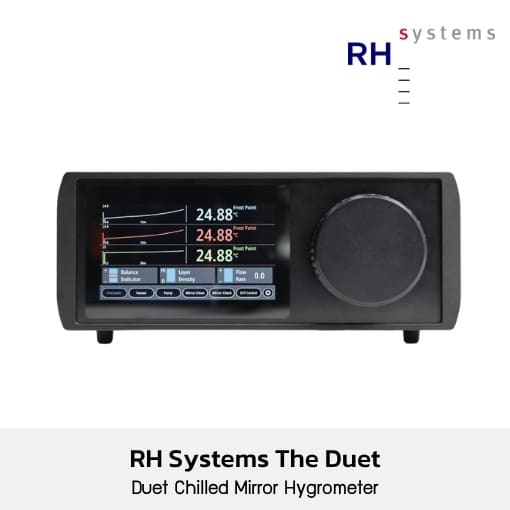

Duet
Duet-HT
Measuring Range:
Frost/Dew Point
-60 °C FP to 20 °C DP
-40 °C FP to 70 °C DP
Relative Humidity
0.1 %RH to 100 %RH
Temperature
-100 °C to 100 °C * (calibrated range –20 °C to 70 °C)
Accuracy:
Frost/Dew Point
± 0.1 °C
Temperature
± 0.07 °C
Reproducibility:
Frost/Dew Point
± 0.05 °C
Temperature
± 0.05 °C
Inputs/Outputs:
Digital Communication
RS-232, USB-B, TCP/IP
Analog Outputs
2 Channel, 0-5 V or 0-20 mA (user configurable)
Second Mirror PRT
Pt100, 4-wire connection
Miscellaneous:
Mirror Cooling
3-stage Thermoelectric
Measuring Head Cooling
Air
Display
Color Touch Screen
Gas Couplings
¼” or 6 mm Swagelok (specify)
Sample Gas Flow Rate
0.2 l/min to 2 l/min
Sample Gas Circuit
PFA
Heated, Stainless Steel
Sample Gas Max Pressure
2 bara
Environmental:
Operating Temperature
10 °C to 30 °C
Storage Temperature
-20 °C to 60 °C
Ambient Humidity
90 %RH max., non-condensing
Power Requirements:
Voltage
100 – 240 VAC, 50/60 Hz
Power Consumption
200 W
300 W
Physical:
Height
155 mm
Width
440 mm
Depth
410 mm
Weight
12 kg
