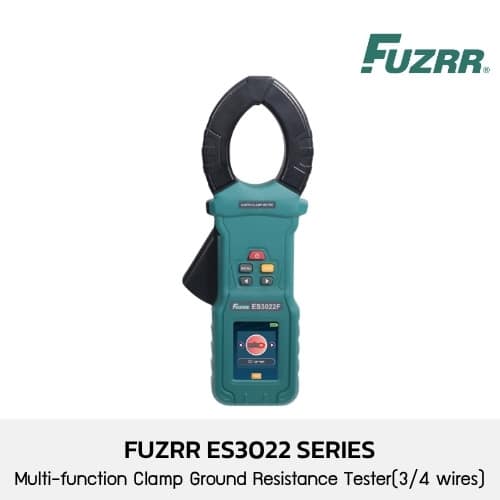

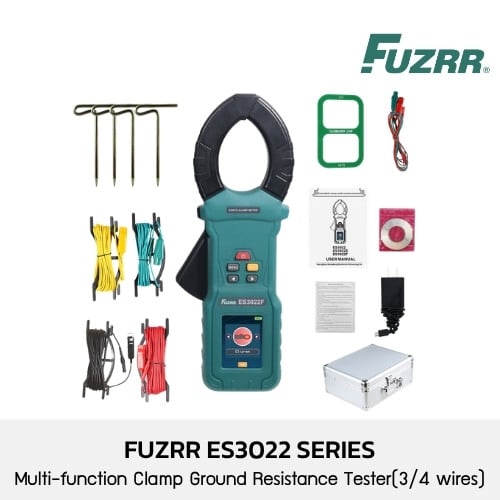

Fuzrr ES3022 Multi-function Clamp Ground Resistance Tester (3/4 wires)

Name: Fuzrr ES3022 Multi-function Clamp Ground Resistance Tester (3/4 wires)
SKU: 17740
Availability: InStock

Price range: 29,000.00 บาท through 48,000.00 บาท ราคานี้ยังไม่รวม VAT 7%

รายละเอียดสินค้า

ขอใบเสนอราคา

Email : ma@measurementasia.com
เบอร์ติดต่อ : 02-157-1701 , 061-625-1666

Model	ES3022, ES3022E, ES3022F

Model	ES3022	ES3022E	ES3022F
Clamp resistance Range	0.00Ω~1500Ω	0.00Ω~1800Ω	0.00Ω~2000Ω
Leakage current range	0.00mA~40A	0.00mA~50A	0.00mA~60A
Current resolution	1uA	1uA	1uA
Three-four wire method range	0.00Ω~300Ω	0.00Ω~30kΩ	0.00Ω~30kΩ
Soil resistivity range	0.00Ω~9999kΩm	0.00Ω~9999kΩm	0.00Ω~9999kΩm
Ground voltage range	600V	600V	600V
Bluetooth	●	●	●
Built-in rechargeable battery	●	●	●
TFT Color display	●	●	●
USB Data upload function	●	●	●
Data storage	●	●	●
Backlight	●	●	●

Function	Ground resistance test, loop resistance test, AC current test, AC voltage test
Accuracy guaranteed temperature and humidity	23℃ ±5℃, below 75%rh
Power Supply	DC 3.7 V lithium battery
Resistance resolution	0.01Ω
Voltage resolution	0.01V
Display	2.4 inch color LCD screen
LCD Size	46mm × 29mm
Meter Dimension	273mm × 106mm × 53mm
Measure time	1 time/sec
Data storage	Maximum 500 groups of data, display “FULL” symbol to indicate that the storage is full
Overflow display	“OL” symbol indication when over-range overflow
Automatic shut-down	Turn off automatically after 15 minutes
Power consumption	750mA Max
Quality	Meter: 975g (including battery)
Production Compliance	IEC61010-1 CAT III 300V, CAT IV 150V, Pollution Grade 2, IEC61010-31, IEC61557-1
IP	IP45
