Main Specifications

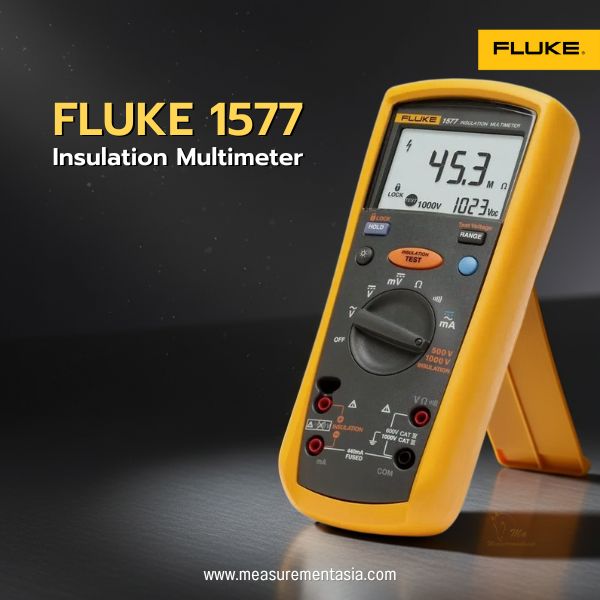

Specifications: Fluke 1577 Insulation Multimeter
Specifications Voltage DC Maximum voltage 1000 V Accuracy ±(0.2%+2) Maximum resolution 0.001 V Voltage AC Maximum voltage 1000 V Accuracy ±(2%+3) Maximum resolution 0.1 mV Current DC Maximum amps 400 mA Amps accuracy ±(1.0%+2) Maximum resolution 0.01 mA Current AC Maximum amps 400 mA Amps accuracy ±(2.0%+2)* Maximum resolution 0.01 mA Resistance Maximum resistance 50 MΩ Accuracy ±(1.2%+2) maximum resolution 0.1Ω Insulation Test Minimum test current @ 1kΩ/V 1 mA Test voltages 500, 1000 V Maximum resistance per test voltage 50 V 100 V 250 V 500 V 1000 V 600 MΩ Maximum resolution per test voltage 50 V 0.01 MΩ 100 V 0.01 MΩ 250 V 0.1 MΩ 500 V 0.1 MΩ 1000 V 0.1 MΩ Accuracy per test voltage 50 V ±(3% + 5) 100 V ±(3% + 5) 250 V ±(1.5% + 5) 500 V ±(2.0% + 5) 1000 V ±(2.0% + 5) Environmental Specifications Operating temperature –20°C to +55°C Storage temperature -40°C to +60°C Humidity (without condensation) 0% – 95% (10°C – 30°C)
0% – 75% (30°C – 40°C)
0% – 40% (40°C – 55°C)Operating altitude 2000 m Safety Specifications General IEC 61010-1: Pollution Degree 2 Measurement IEC 61010-2-033: CAT IV 600V / CAT III 1000V Mechanical and General Specifications Size 203 x 100 x 50 mm (with holster) Weight 624 g Warranty 3 years Battery life alkaline Meter use 1000 hours Insulation test use Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off. IP rating IP40
