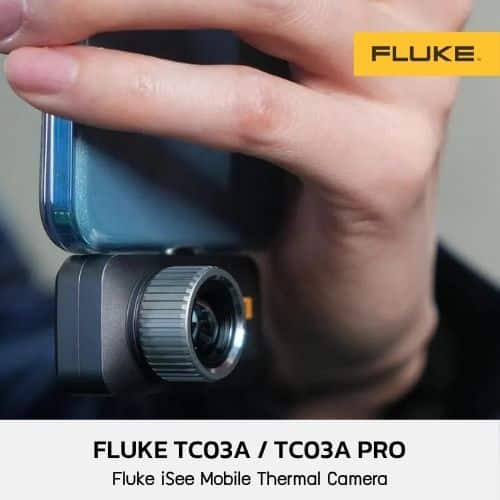

Fluke iSee Mobile Thermal Camera รุ่น TC03A / TC03A PRO

รายละเอียดสินค้า

กล้องถ่ายภาพความร้อนพกพา Fluke TC03A

ขอใบเสนอราคา

Email : [email protected]
เบอร์ติดต่อ : 02-157-1701 , 061-625-1666

Model	Fluke TC03A 25HZ, Fluke TC03A PRO 50HZ

Models	TC03A/9Hz	TC03A/25Hz	TC03A PRO/50Hz
IR Resolution	384 x 288
SuperResolution	Yes, up to 768 x 576
Pixel size	12 μm
Temperature range	-20 ℃ to 150 ℃, 100 ℃ to 550 ℃
Temperature accuracy	± 2% of rdg. or ± 2 °C, whichever is greater
	(@ 23 °C ± 5 °C ambient temperature)
Frame rate	9 Hz	25 Hz	50 Hz
Focal length	10.5 mm
Focusing mode	Manual
Nonuniformity Correction (NUC)	Manual / Auto
Thermal sensitivity (NETD)	50 mK		45 mK
Spectral range	8 to 14 μm
Field of View (FOV)	25° x 19°
Spatial Resolution (IFOV)	1.14 mrad
USB Interface	Type C
Operating system supported	Android and HarmonyOS
Operating temperature	0℃ to 40 ℃
Storage temperature	-30 ℃ to 60 ℃
Operating humidity	10% to 90% RH (non-condensing）
Power consumption	700 mW (Typical)
Ingress protection	IEC 60529: IP54 (with the protective cover for Type-C)
Operating altitude	2000 m
Storage altitude	12000 m
Dimensions (L x W x H)	60 mm x 36 mm x 28 mm
Weight	55 g
Warranty	2 years
