Specifications

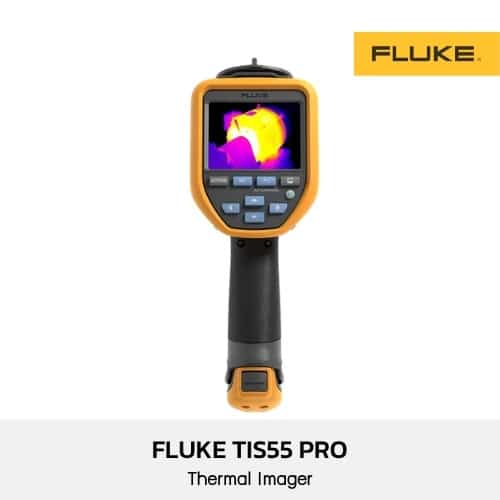

Model Fluke TiS55 PRO Key Features Infrared resolution 288 x 216 (62,208 pixels) SuperResolution 576 x 432 Detector type Uncooled focal plane infrared detector Infrared Spectral band 8 – 14 µm Field of view 42° x 32° IFOV 2.50 mRad Minimum focus distance 0.1 m Focus system Manual focus + focus free Agile Focus Yes Digital Zoom 1-4x Wireless connectivity Yes, direct transfer thermal images wirelessly to mobile phones or PCs Standard software: Fluke Connect Express Yes, functions such as thermal image analysis, historical trend generation, custom reports, and inspection management supported Asset tagging Yes, name thermal images automatically by scanning QR codes or barcodes and save them as asset tags for thermal images IR-Fusion technology Blend continuous 0% to 100%. 1% step for adding visible details to infrared images Picture-in-Picture (PIP) Yes Display screen 3.5″ (8.9 cm landscape)
Touchscreen 640 x 480 LCDErgonomic design Designed specifically for one-handed use Thermal sensitivity <= 40 mk (0.04 ℃) Temperature level and span Smooth auto and manual scaling Fast auto-rescale in manual mode Yes Minimum span (in manual mode) 3 °C Minimum span (in auto mode) 3 °C Built-in digital camera (visible light) 13 mp Frame rate 9 Hz or 30 Hz Dew point calculation No
Temperature Measurement Temperature span -20 °C to 550 °C Temperature range -20 °C to 150 °C
0 °C to 550 °CAccuracy ±2 °C or 2%, whichever is greater
(ambient temperature of 18 to 28 °C)On-screen temperature correction Yes, emissivity, background temperature, measurement distance and transmission correction supported Standard palettes 10
Gray, Ironbow, High Contrast, Amber, Hot Metal, Blue-Red, Amber Inverted, Gray Inverted, Rainbow, StepsSpot temperature Center spot (unmovable) Auto high/low temperature capture High and low temperature points marked and tracked automatically User-definable spot markers Points: 5
Lines: 5
Areas: 5Custom temperature difference calculation 3 3-phase maximum temperature difference calculation Yes Image mode Infrared, visible light, PIP, visible light and infrared fusion Audible alarms Alarm objects: highest temperature point, lowest temperature point, center point, custom point or line or area, 3-phase maximum temperature difference, custom temperature difference
Alarm conditions: Above the temperature, below the temperatureColor alarms Yes, above the temperature, below the temperature, within the temperature span, outside the temperature span Preset measurement parameters (profile) Up to 50 profiles can be saved
General Specificiations Preset shortcut keys 6 Laser Yes Flashlight Yes Type-C interface Yes, charging and data transfer supported Operating temperature -10 °C to 50 °C Storage temperature -20 °C to 60 °C, without batteries Relative humidity 10% to 95% non-condensing Safety standards IEC 61010-1: pollution degree 2 Electromagnetic combability IEC 61326-1: Industrial Electromagnetic Environment;
CISPR 11: Group 1, Class AAustralia RCM RCM IEC 61326-1 Radio frequency (WIFI and Bluetooth) 2.4 GHz Radio output power (WIFI and Bluetooth) <100 mW Laser IEC 60825-1, Class 2; 650 nm; <1 mW Drop Engineered to withstand 2 m drop Ingress protection IEC 60529: IP52 RoHS3 Directive Yes
