Specifications
MODEL CONTRAST

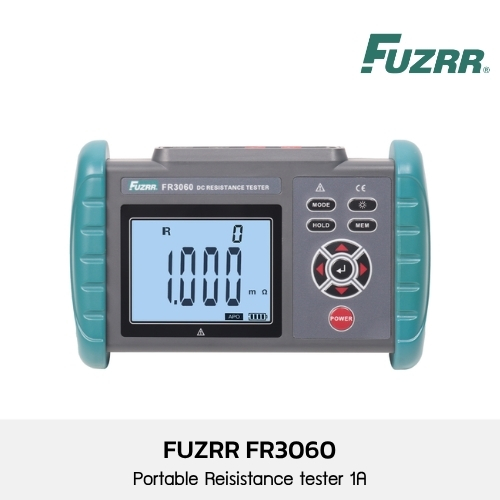

Model
FR3060A
FR3060
Resistance range
0.01mΩ~30.00kΩ
0.001mΩ~300.0kΩ
Resolution
10uΩ
1uΩ
Data storage
500 groups
500 groups
USB connect computer
No
Have
Rechargeable function
Have
Have
TECHNICAL PARAMETERS
Function
Mainly used to measure the wire resistance of the cable, the contact resistance of the switch, the connector, the relay, the resistance of the coil, the motor, the transformer winding, the metal riveting resistance, the connection resistance test between the metal components, the low value resistance test, the ground floor ground Resistance test of connecting conductor, contact resistance test, etc.
Total DC resistance range
FR3060: 0.001mΩ~300.0kΩ
resolution: 0.001mΩ
accuracy: ±0.1%FS
FR3060A: 0.01mΩ~30.00kΩ
resolution: 0.01mΩ
accuracy: ±0.1%FS
Test method
Four-wire test
Short circuit test current
≥1A
Open circuit voltage
≤4.2V
Over load protection
Have
Capacity factor
Measure capacity factor ≤ 8W
Power
DC 3.7V 2500mAh Large-capacity lithium battery
Display mode
LCD display, gray screen backlight
Instrument size
L/W/H: 187 mm × 119 mm × 50mm
Test line length
About 60cm, red、black each 1
Measurement time
About 2 times/sec
USB interface
With micro USB interface
Data storage
500 groups, “MEM” storage instructions, display “FULL” symbol indicates that the storage is full
Automatic shut-down
The instrument automatically shuts down after about 15 minutes without operation.
Production Compliance
IEC61010-1, CAT III 600V, Pollution Grade 2, JJG724-1991, JJG166-1993, DL/T967-2005
IP
IP54
