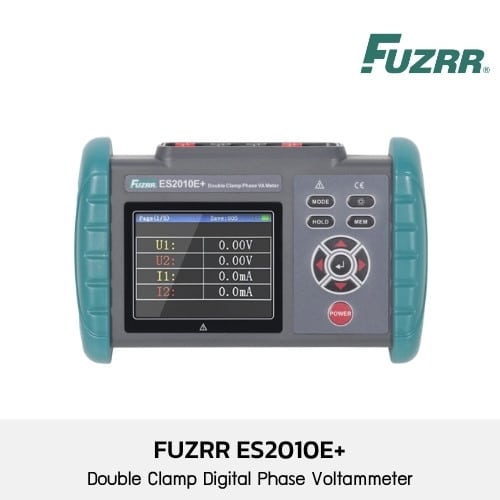

Specifications
Function
Measure two-phase AC voltage, current, voltage phase, current phase, voltage and current phase, frequency, phase sequence, active power, reactive power, apparent power, power factor, judging the transformer wiring group, inductive, capacitive circuit, test secondary circuit and busbar protection system, read out the phase relationship between the CTs of the differential protection groups, check the correctness of the wiring of the watt-hour meter, repair the line equipment, etc.
Power
3.7V lithium battery
Display mode
Color LCD display , 72*55mm
Instrument size
L/W/T : 187*119*48mm
Jaw size
Φ8mm
Voltage range
AC 0.00V ~ 600V
Resolution : 0.01V
Accuracy : ±(1.5%rdg+3dgt)
Current range
AC 0.0mA ~ 20.0A
Resolution : 0.1mA
Accuracy : ±(1.5%rdg+3dgt)
Phase range
0.0° ~ 360.0°
Resolution : 0.1°
Accuracy : ±1°
Frequency range
45.00Hz ~ 65.00Hz
Resolution : 0.01Hz
Accuracy : ±0.1Hz
Active power range
0.0W ~ 12kW
Resolution : 0.1W
Accuracy : ±(3%rdg+3dgt)
Reactive power range
0.0 VAR ~ 12kVAR
Resolution : 0.1VAR
Accuracy : ±(3%rdg+3dgt)
Apparent power range
0.0 VA ~ 12kVA
Resolution : 0.1VA
Accuracy : ±(3%rdg+3dgt)
Power factor range
-1 ~ +1
Resolution : 0.001
Accuracy : ±0.03
Detection rate
About 2 second/time
Data hold
Press HOLD key to hold data during test, “HOLD” symbol display
Data storage
500 groups
Silicone protective sleeve
Have
USB interface
USB interface, uploading data to a computer for analysis of management data
Automatic shut-down
About 15 minutes after power on, the meter will automatically shut down
Backlight function
Yes, suitable for dark places and night use

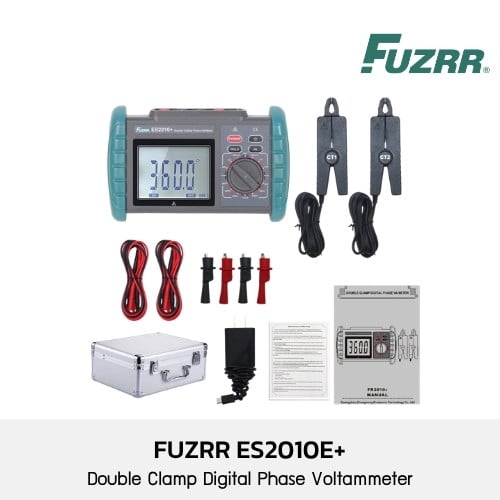

Instrument weight
Host : 350g(including battery) , Tip-shaped current clamp : 180g*2 , Test line : 190g
Production Compliance
IEC61010-1 CAT III 600V, IEC61010-031, IEC61326, Pollution Grade 2
IP
IP45
