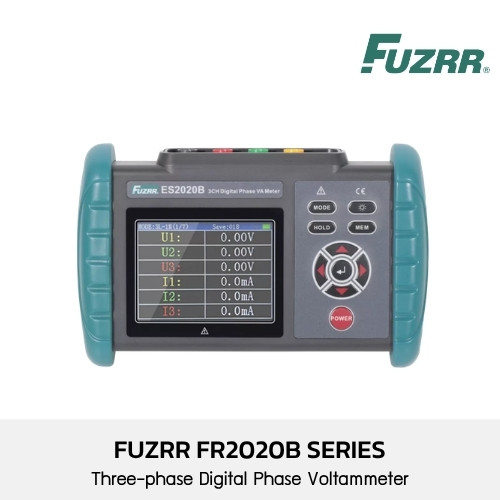

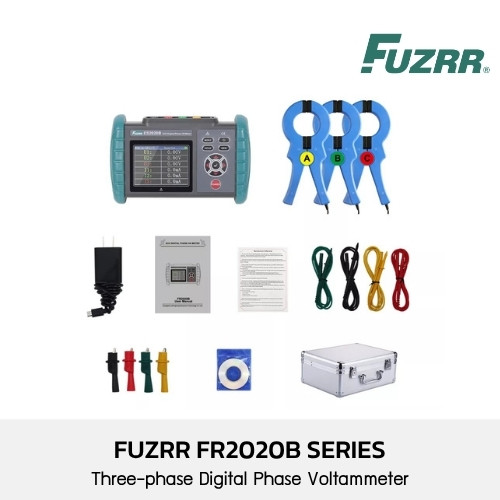

Specifications
Function
Measure three-phase AC voltage, current, voltage phase, current phase, voltage and current phase, frequency, phase sequence, active power, reactive power, apparent power, power factor, current vector sum, judging the transformer wiring group, inductive, capacitive circuit, test secondary circuit and busbar protection system. read out the phase relationship between the CTs of the differential protection groups, check the correctness of the wiring of the watt-hour meter, repair the line equipment, etc.
Power
3.7V lithium rechargeable battery
Display mode
Color LCD display , 72×55mm
Instrument size
W/H/T : 187*119*48mm
Jaw size
Φ50mm
Voltage
AC 0.00V ~ 600V
Resolution : 0.01V
±(1.5%rdg+3dgt)
Current
AC 0.0mA ~ 1000A
Resolution : 0.1mA
±(1.5%rdg+3dgt)
Phase
0.0° ~ 360°
Resolution : 0.1°
±1°
Frequency
45Hz ~ 65Hz
Resolution : 0.01Hz
±0.1Hz
Active power
0.0W ~ 600kW
Resolution : 0.1W
±(3%rdg+3dgt)
Reactive power
0.0VAR ~ 600kVAR
Resolution : 0.1VAR
±(3%rdg+3dgt)
Apparent power
0.0VA ~ 600kVA
Resolution : 0.1VA
±(3%rdg+3dgt)
Power factor
-1 ~ +1
Resolution : 0.001
±0.03
Current vector sum
0mA ~ 3000A
Resolution : 1mA
Phase sequence
Normal phase : U1、U2、U3 or I1、I2、I3 cursor blinks from left to right
Opposition : U1、U2、U3 or I1、I2、I3 cursor blinks from right to left
Detection rate
About 2 second/time
Data storage
500 groups
Silicone protective sleeve
Have
USB interface
USB interface, uploading data to a computer for analysis of management data
Automatic shut-down
About 15 minutes after power on, the meter will automatically shut down
Backlight function
Yes, suitable for dark places and night use
Instrument weight
Hose : 380g(including battery), Large diameter current clamp : 440g×3, Test line : 190g
Production Compliance
IEC61010-1 CAT III 600V , IEC61010-031, IEC61326, Pollution Grade 2
IP
IP45
