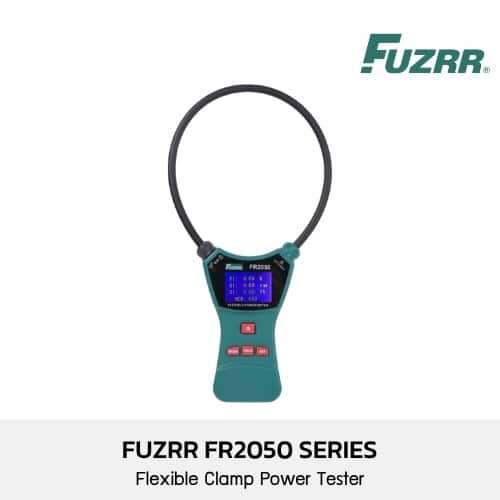

Fuzrr FR2050 Series Flexible Clamp Power Tester

Name: Fuzrr FR2050 Series Flexible Clamp Power Tester
SKU: 17715
Availability: InStock

Price range: 13,000.00 บาท through 15,000.00 บาท ราคานี้ยังไม่รวม VAT 7%

รายละเอียดสินค้า

Fuzrr FR2050 เครื่องวัดพลังงานไฟฟ้าแบบแคลมป์สายอ่อน

ขอใบเสนอราคา

Email : ma@measurementasia.com
เบอร์ติดต่อ : 02-157-1701 , 061-625-1666

Model	FR2050, FR2050E

Model	FR2050	FR2050E
Coil length	470mm	950mm
Coil inner diameter	Φ150mm	Φ300mm

Function	Three-phase AC voltage, leakage current, current, active power, reactive power, apparent power, total power, phase of current and voltage, phase between voltage, frequency, energy, phase sequence, etc.
Current range	AC 0.0A ~ 3000A	Resolution : 0.1A
Voltage range	AC 0.0V ~ 600V	Resolution : 0.01V
Phase range	0.0° ~ 360.0°	Resolution : 0.1°
Power factor	0.3 ~ 1.0	Resolution : 0.001
Power range	AC 0.5W ~ 1800KW	Resolution : 0.01W
Electric energy range	0.0000kWh~1800000kWh	Resolution : 0.0001KWh
Power	DC4.5V 7# Alkaline battery（1.5V AAA×3）
Measure mode	Flexible CT, three-phase voltage clip
Jaw size	Φ150mm / Φ300mm
Wire position	The measured wire is at the center of the flexible coil
Data storage	200groups，display “FULL” symbol indicates that storage is full
Frequency	50Hz/60Hz automatic identification
Shift	Automatic switching
Sample rate	About 2 times/second
Line voltage	AC 600V line measurement
Display mode	LCD : 128dots×64dots；Display area：43mm×29mm
Instrument size	Host size:W71H: 15110035mm (without coil)
Backlight	Have
Data storage	Data storage function : “HOLD”symbol display
Automatic shut-down	About 15 minutes after power on, the meter will automatically shut down
Instrument weight	Instrument：1kg(with battery and accessories)
Production Compliance	IEC1010-1、IEC1010-2-032 Pollution Grade 2, CAT III 600V
IP	IP45
