Specifications

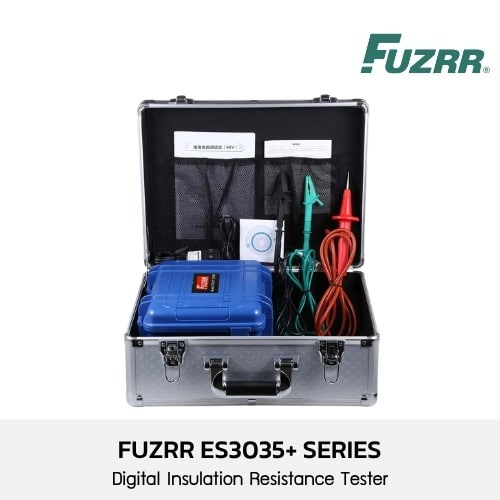

Function Insulation resistance test, voltage test Base conditions 23°C±5°C，below 75%rh Rated voltage(V) 100；250；500；1000；2500V；5000V Test Voltage(V) rated voltage×（1±10%） Insulation Resistance Range（GΩ） 0.01MΩ～2000GΩ Insulation Resistance Resolution 0.01MΩ DC Voltage Range 0～1000V DC Voltage Range Resolution 0.1V AC Voltage Range 0～750V AC Voltage Range 0.1V Output short-circuit Current ≥5mA(5KV) Absorption Ratio and Polarization Index Measurement Have Power Supply 12.6V rechargeable battery Backlight Controllable gray screen backlight, suitable for use in dim places Dispaly mode 4-bit large LCD display, gray screen backlight LCD display size 108mm×65mm Instrument size L/W/H：277.2mm×227.5mm×153mm USB interface With USB interface, software monitoring, storage data can be uploaded to the computer, save and print Communication Line USB communication line 1PC Test Line High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter Data Storage 500 groups, “FULL” symbol indicates that storage is full Data Review Data review function: “MR” symbol display Overflow Display Exceed measurement range overflow function: “OL ” symbol display Alarm Function Alarm when the measured value smaller than the alarm setting value Power Consumption Standby: 30mA Max(backlight off) Turn on backlight: 42mA Max Measure：300mA Max(backlight off) Instrument weight 2720g(including battery) Battery voltage When the battery voltage is low, low battery symbol “ ”will display Automatic shut-down automatic shutdown after 15 minutes boot Insulation Resistance ≥50MΩ(between Measuring line and housing) voltage withstand AC3kV/50Hz 1min Working Temperature and Humidity －10℃～+50℃＜85%RH Storage Temperature and Humidity －15℃～+55℃＜90%RH Suitable for Safety Regulations IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54) pollution grade 2、CAT Ⅲ 300V
