| Model | FR3015, FR3015E |
|---|
ขอใบเสนอราคา
4,000.00 บาท – 5,000.00 บาทPrice range: 4,000.00 บาท through 5,000.00 บาท ราคานี้ยังไม่รวม VAT 7%
| Model | FR3015, FR3015E |
|---|
MODEL CONTRAST
Model
FR3015
FR3015E
Rated voltage
100 ~ 1000V
250 ~ 2500V
Insulation resistance
0.6MΩ ~ 50GΩ
0.10MΩ ~ 100GΩ
TECHNICAL PARAMETERS
Function
Insulation resistance test, voltage test
Base condition
23 ℃ ± 5 ℃ , below 75%RH
Rated voltage (V)
100 ~ 2500V
Measuring voltage
The rated voltage × (1 ± 10%)
Insulation resistance range
100GΩ MAX
Resolution : 0.01MΩ
Insulation resistance resolution
0 ~ 1000V
Resolution : 0.1V
AC voltage range
0~750V
Resolution : 0.1V
Output short -circuit current
≥1.5mA (1000V)
A absorption ratio and polarization index measurement
Yes
Power supply
1.5V (AA) alkaline battery 8 section 8
Backlight
Controlled gray -white screen backlight, suitable for dark fields
Display mode
4 large LCD display, gray and white screen backlight
LCD display size
73mm × 43mm
Meter size
175mm (long) × 112mm (width) × 53mm (height)

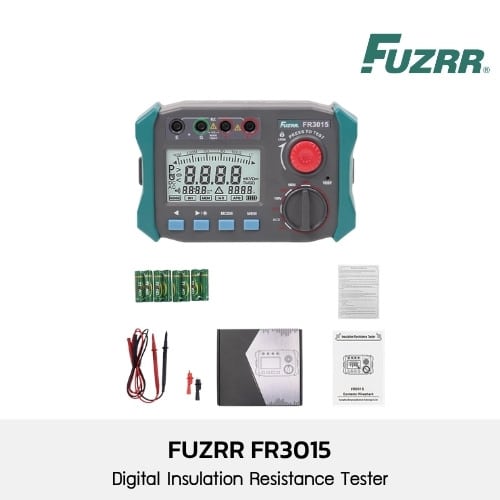

Test line
High -pressure test line red 1 meter, black 1 meter, green line 1 meter
Data storage
500 groups, flashing display “FULL” symbol indicates that the storage is full
Data review
Data viewing function: “MEM” symbol display
Overflow
Extraction overflow function: “ol” symbol display
Alarm function
When the measurement value exceeds the alarm setting value
Power consumption
Standby: 18MA MAX (Backlight shutdown)
Putting on the backlight: 43MA MAX
Measurement: 326mA Max (Backlight shutdown)
Quality
1230g (including battery)
Production Compliance
IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529 (IP54), pollution, etc. 2. CAT III 600V
IP
IP54

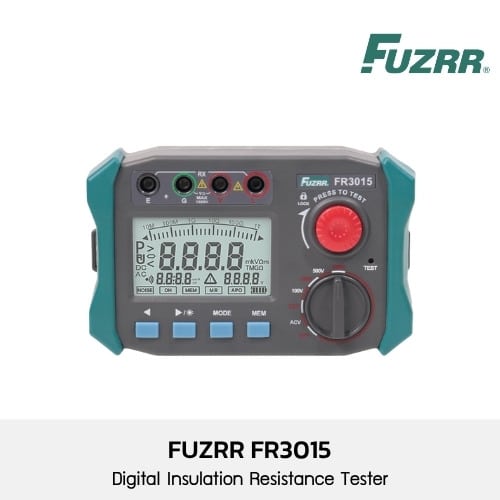

Insulation Resistance Tester
