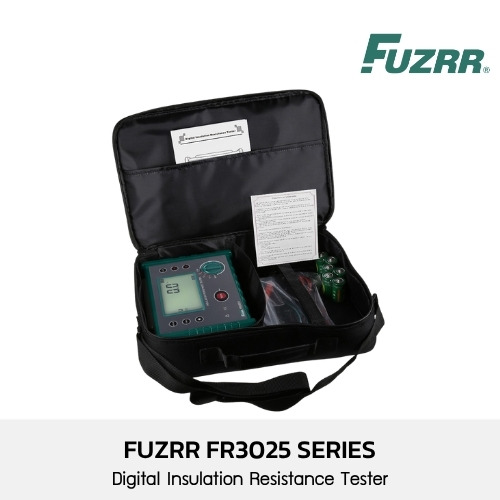

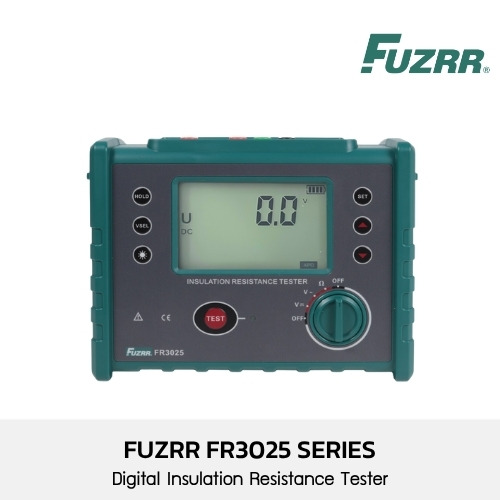

Fuzrr FR3025 Series Digital Insulation Resistance Tester

Name: Fuzrr FR3025 Series Digital Insulation Resistance Tester
SKU: 17757
Availability: InStock

Price range: 10,000.00 บาท through 14,000.00 บาท ราคานี้ยังไม่รวม VAT 7%

รายละเอียดสินค้า

Fuzrr FR3025 Series เครื่องวัดฉนวนไฟฟ้า

ขอใบเสนอราคา

Email : ma@measurementasia.com
เบอร์ติดต่อ : 02-157-1701 , 061-625-1666

Model	FR3025, FR3025E

MODEL CONTRAST

Model	FR3025（250V）	FR3025E（5000V）
Rated voltage(V)	100；250；500；1000；2500	250；500；1000；2500；5000
Insulation resistance range（GΩ）	0.01MΩ~200GΩ	0.01MΩ~200GΩ
Resolution	0.01MΩ	0.01MΩ
Accuracy	±3%rdg±5dgt	±3%rdg±5dgt
Output short-circuit current	≥2mA(2500V)	≥2mA(5000V)
DAR & PI	Have	Have

TECHNICAL PARAMETERS

Function	Insulation resistance test, voltage test
Test voltage(V)	Rated voltage（±(1%+10%))
Voltage range	DC: 0~1000V , resolution : 0.1V; AC: 0~750V , resolution : 0.1V
Power	1.5V (LR14) Alkaline Battery 6 Section
Backlight	Controllable gray screen backlight, suitable to use in dim place
Display mode	4-bit large LCD display, gray screen backlight
LCD Display Size	108mm×65mm
Meter Dimension	L/W/H: 240mm×188mm×85mm
Test Line	High voltage test line red 1 meter, black 1 meter, green line 1 meter
Data Storage	500 groups, “FULL” symbol indicates that storage is full
Alarm Function	Alarm when the measured value exceeds the alarm setting value
Power Consumption	Standby: 40mA Max(backlight off), turn on backlight: 43mA Max, measure: 80mA Max (backlight off)
Weight	1230g (including battery)
Automatic shut-down	Automatic shutdown after 15 minutes boot
Insulation Resistance	≥50MΩ（1000V）
Production Compliance	IEC61010-1(CAT III 300V、CAT IV 150V、Pollution Grade 2)
IP	IP54
