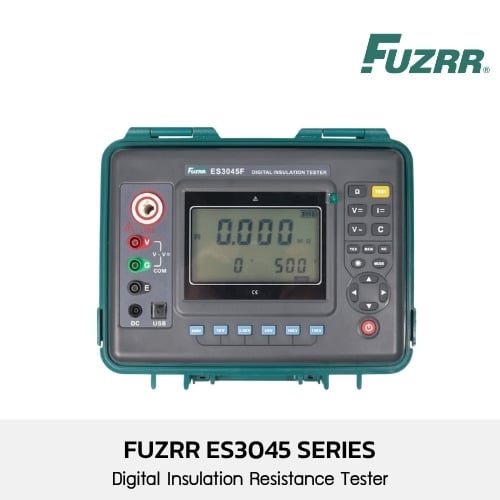

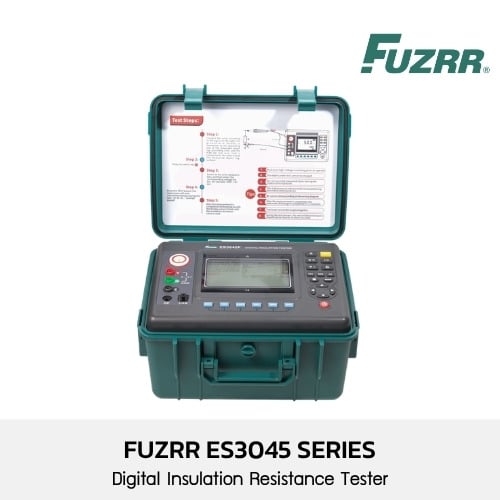

Fuzrr ES3045 Series Digital Insulation Resistance Tester

Name: Fuzrr ES3045 Series Digital Insulation Resistance Tester
SKU: 17763
Availability: InStock

Price range: 35,000.00 บาท through 63,000.00 บาท ราคานี้ยังไม่รวม VAT 7%

รายละเอียดสินค้า

Fuzrr ES3045 | เครื่องวัดความต้านทานฉนวน

ขอใบเสนอราคา

Email : ma@measurementasia.com
เบอร์ติดต่อ : 02-157-1701 , 061-625-1666

Model	ES3045, ES3045E, ES3045F

MODEL CONTRAST

Model	ES3045	ES3045E	ES3045F
Rated applied voltage(V)	100; 250; 500; 1000; 2500; 5k	250; 500; 1000; 2500; 5k; 10k	500; 1000; 2500; 5000; 10k; 15k
Resistance limit range	0.01MΩ ~ 10TΩ	0.01MΩ ~ 35TΩ	0.01MΩ ~ 50TΩ
Resolution	0.01MΩ	0.01MΩ	0.01MΩ
Accuracy	±3%rdg±5dgt	±3%rdg±5dgt	±3%rdg±5dgt
Output short-circuitt current	≥6mA	≥6mA	≥6mA

TECHNICAL PARAMETERS

Function	Insulation resistance test, voltage test, current test, capacitance test
Basic condition	23°C±5°C , below 75%rh
DC voltage range	0.1 ~ 1000V	accuracy : ±1.5%rdg±3dgt	Resolution: 0.1V
AC voltage range	0.1 ~ 750V	accuracy : ±1.5%rdg±3dgt	Resolution: 0.1V
DC current measurement	0.01nA ~ 6mA	accuracy : ±5.0%rdg±2dg	Resolution: 0.01nA
Capacitance test	10nF ~ 50uF	accuracy : ±10%rdg±5dg	Resolution: 10nF
Absorption ratio and polarization index measurement	Have
Power	11.1V rechargeable battery
Backlight	Controllable gray screen backlight, suitable for use in dim places
Display mode	4-bit large LCD display, gray screen backlight
Instrument size	240mm (L)188mm (W)85mm (H)
USB interface	With USB interface, software monitoring, storage data can can upload computer, save and print
Communication line	USB communication line 1pc
Test line	High voltage rod red line 3 meters, high voltage test line black line 1.5 meters, green line 1.5 meters
Alarm function	When the measured value exceeds the alarm set value, an alarm prompt is issued.
Instrument weight	2720g(including battery)
Production Compliance	IEC61010-1, 5.IEC60529(IP54), Pollution Grade 2, CAT III 300V CAT III 1000V CAT IV 600V
IP	IP54
