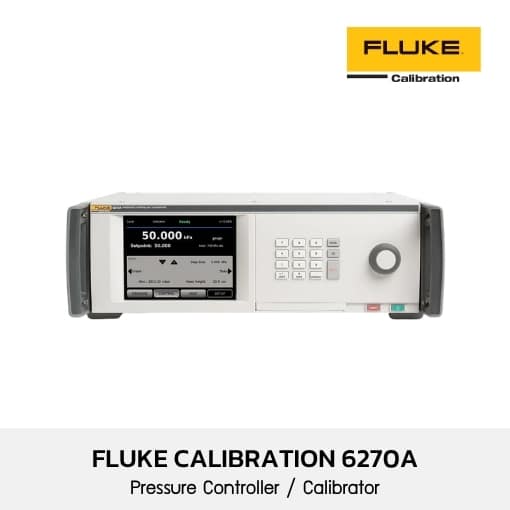

Specifications
| General specifications | |
| Power requirements | 100 V ac to 240 V ac, 47 Hz to 63 Hz |
| Fuse | T2A 250 V ac |
| Max power consumption | 100 W |
| Operating ambient temperature range | 15 °C to 35 °C |
| Storage temperature | -20 °C to 70 °C |
| Relative humidity | Operating: <80 % to 30 °C, <70 % to 40 °C, <40 % to 50 °C |
| Storage: <95 %, non-condensing. A power stabilization period of four days may be required after extended storage at high temperature and humidity. | |
| Vibration | MIL-T-28800E |
| Altitude (operation) | <2000 m |
| Ingress protection | IEC 60529: IP20 |
| Safety | IEC 61010-1, Installation Category II, Pollution degree 2 |
| Weight (Chassis only) | 13 kg (28.5 lbs) |
| Dimensions | Height: 147 mm (5.78 in) |
| Width: 454 mm (17.79 in) | |
| Depth 488 mm (19.2 in) | |
| Rack mount dimensions | 3U-19 inch rack |
| Warm up time | 15 minutes after power up or module installation, when items previously stored within Operating Ambient Temperature Range. |
| Calibration | ISO/IEC 17025 accreditation |
| Control specifications | |
| Control precision (dynamic mode) | PM200-BG2.5K range ± 0.005% range PM500, ranges ≤ 20 kPa (80 inH20) ± 0.002% range All other ranges ± 0.001% range |
| Control turndown1 | 10:1 (typical) |
| Low control point | 1 kPa (0.15 psi) absolute |
| Supply pressure requirements | |
| Clean dry N2 or air – Industrial grade nitrogen, 99.5 %+ | |
| Particulate contamination | ≤ 1.25 micrometer (50 microinches) |
| Maximum moisture content | -50 °C dew point |
| Maximum hydrocarbon content | 30 ppm |
| Vacuum supply requirements (when operating near or sub-atmospheric) | |
| >50 liters per minute capacity with Auto Vent feature | |
| Appropriate protections for High Pressure Gauge work system exhaust gas will pass through the Vacuum supply system. | |
| Interface/communications | |
| Primary remote interfaces | IEEE 488.2, Ethernet, RS232, USB |
| System connection | Supports interconnection of two or three systems |
| Switch test connection | Standard 4 mm jack: Nominal 24 v dc isolated drive Maximum 30 V dc w.r.t. chassis ground |
| Aux drivers | 4 external solenoid drivers 24 V dc drive (maximum drive 6 W continuous per channel) |
