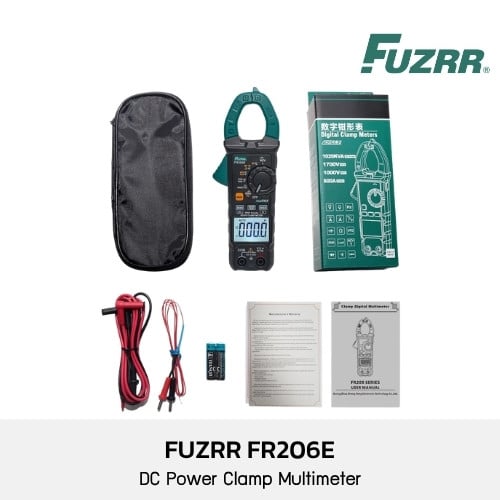

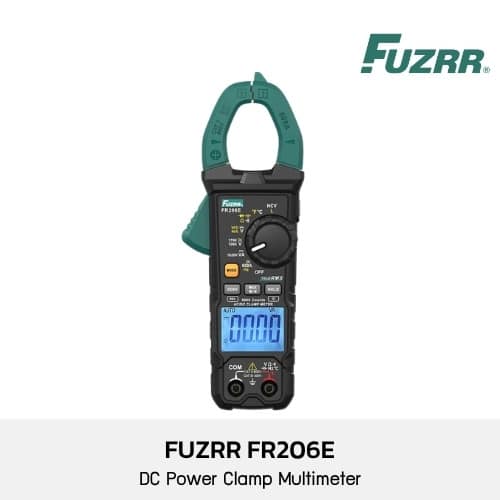

Fuzrr FR206E DC Power Clamp Multimeter

Name: Fuzrr FR206E DC Power Clamp Multimeter
SKU: 17712
Price: 3000.00 THB
Availability: InStock

3,000.00 บาท ราคานี้ยังไม่รวม VAT 7%

รายละเอียดสินค้า

Fuzrr FR206E แคลมป์มิเตอร์

ขอใบเสนอราคา

Email : ma@measurementasia.com
เบอร์ติดต่อ : 02-157-1701 , 061-625-1666

Function / Model	Range	Accuracy	Tolerance
DC Power (kVA)	1020kVA	0.01VA	±(3%+30)
DC Current (A)	60A / 600A	0.01A	±(2%+5)
AC Current (A)	60A / 600A	0.01A	±(2%+5)
DC High Voltage (V)	1700V	0.01V / 1V	±(2%+10)
AC High Voltage (V)	1000V	0.01V / 1V	±(2%+10)
DC Voltage (V)	600V	0.01V	±(0.5%+3)
AC Voltage (V)	600V	0.01V	±(0.8%+3)
ACV / Bandwidth (Hz)	1kHz	–	–
ACA / Bandwidth (Hz)	60Hz	–	–
Frequency (ACV Hz)	60kHz	0.001Hz / 0.001kHz	±(0.5%+5)
Resistance (Ω)	600Ω ~ 600kΩ	0.1Ω / 0.001kΩ /	±(1%+5)
Resistance (Ω)	6MΩ ~ 60MΩ	0.001MΩ	±(2%+5)
Capacitance (F)	6nF ~ 600uF	0.001nF / 0.001uF	±(4%+5)
Capacitance (F)	6mF / 60mF	0.01mF	±(8%+5)
Temperature (℃)	1000℃	1℃	±(1.5%+4)
Temperature (℉)	1832℉	1℉	±(2%+5)
FEATURES
Display Counts	6000
Auto Range	●
True RMS	●
ACV VFD	●
Connuity / Diode	●
Auto power off	●
Backlight / Torch	●
Battery	AAA1.5V×2
Category Ratings	CAT III 300V CAT II 600V

Specifications	Fuzrr FR206E	Brymen BM157s
Display Counts	6000	6000
DC Current	600 A	-
AC Current	600 A	1000 A
DC Power	1020 kVA	600 kVA
High Voltage AC	1000V	600 V
High Voltage DC	1700V	600 V
Resistance Measuring	60MΩ	999.9 Ω
Capacitance Measuring	60 µF	-
Temperature	1000 °C	-
Frequency Measuring	60 kHz	500 Hz
Function	Continuity / Diode / Duty Cycle	Balance Load 3phase/ 1 phase Power W, VA & VAR,
Function	NCV / LIVE , Red LED Flash & Continuity Buzzere	PF, A-Lags-V, kWHr, Total Harmonic, THD%-F
Category Ratings	CAT III 300V / CAT II 600V	CAT III 600 V, Transient protection 6kV
Price	3,000.00	6,500.00
