Specifications
Model

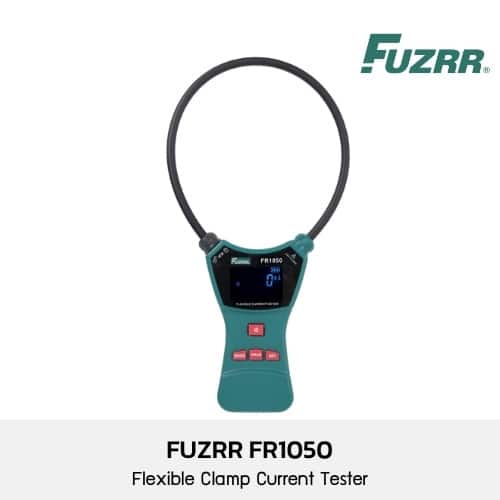

FR1050A
FR1050
FR1050E
Coil length
470mm
470mm
950mm
Coil inner diameter
Φ150mm
Φ150mm
Φ300mm
Current range
0A-10000A
0mA-10000A
0mA-10000A
Current resolution
0.1A
1mA
1mA
TECHNICAL PARAMETERS
Function
Current test, leakage current test, DC voltage test, AC voltage test
Current accuracy
Accuracy ±2%±5dgt (The wire is at the center of the flexible coil, 23℃±2℃)
AC Voltage Range
0.0V ~ 750V AC Resolution: 0.1V Accuracy: ±1.5%rdg±3dgt
DC Voltage Range
0.0V ~ 1000V DC Resolution: 0.1V Accuracy: ±1.5%rdg±5dgt
Sampling rate
2 times/sec
Power
DC4.5V 7# alkaline battery (1.5V AAA × 3)
Backlight
Have
Test method
Flexibility CT
Instrument size
Host size: W/T/H: 151 × 100 × 35mm (not including coil)
LCD size
45mm × 28mm
Coil thickness
Φ8mm (Suitable for narrow environments and cable-intensive places)
Instrument total weight
220g (φ150mm caliber, including battery)
Overflow display
Over-range overflow function: “OL” symbol display
Data storage
500 groups, “FULL” symbol display means the storage is full
Battery voltage
The battery voltage is 4 grids. When the battery symbol is empty, the battery is less than 3.15V.
Insulation resistance
Larger than 100MΩ (1kV)
Working temperature and humidity
-10°C ~ 40°C below 70%rh
Storage temperature and humidity
-10°C ~ 60°C below 80%rh
Production Compliance
IEC1010-1, IEC1010-2-032, pollution grade 2, CAT III (600V) IEC61326 (EMC standard)
IP
IP45
