Specifications

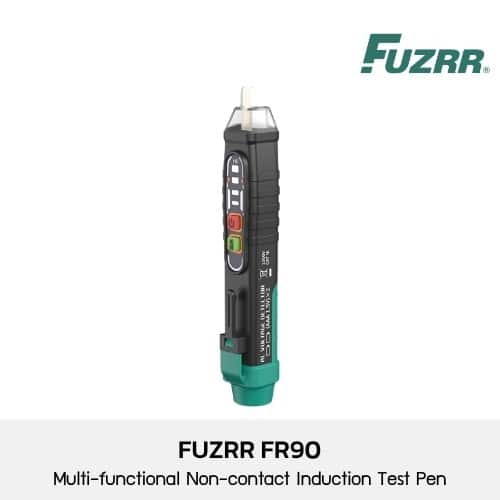

Fuzrr FR90 ปากกาเช็คไฟแบบไม่สัมผัส
Function
Intelligent identification of neutral and live wires, line breakpoint detection, non-contact voltage detection, lighting flashlight, sound and light alarm, low voltage prompt, automatic shutdown
Voltage detection range
12V~1000V AC
Frequency
50Hz/60Hz
Alarm method
Sound and light alarm
Automatic identification
Automatic detection of electric field close to the measured point
Zero fire line judgment
Judging by the signal strength, the strong signal is the live line, and the weak signal is the neutral line.
Line breakpoint detection
Line breakpoints under live conditions, quickly identify the live end and the uncharged end
Signal strength indicator
The buzzing sound changes from slow to fast; the indicator light flashes from slow to fast
Flashlight
White LED lighting
Low voltage reminder
When the battery voltage is lower than 2.4V, the power light flashes and the buzzer prompts
Automatic shut-down
If there is no operation within 5 minutes, it will automatically shut down if no voltage signal is detected
1 meter drop test
Made of high-quality materials, durable and drop-proof, shock-proof and shake-proof
Working temperature and humidity
-20℃~40℃; over 80%rh
Storage temperature
-20℃~0℃; below 70%rh
Power supply
2* 1.5V AAA batteries
Weight
About 32g (without battery)
Size
158mm×28mm×23mm
Production Compliance
CAT III 1000V CAT IV 600V
IP
IP54
